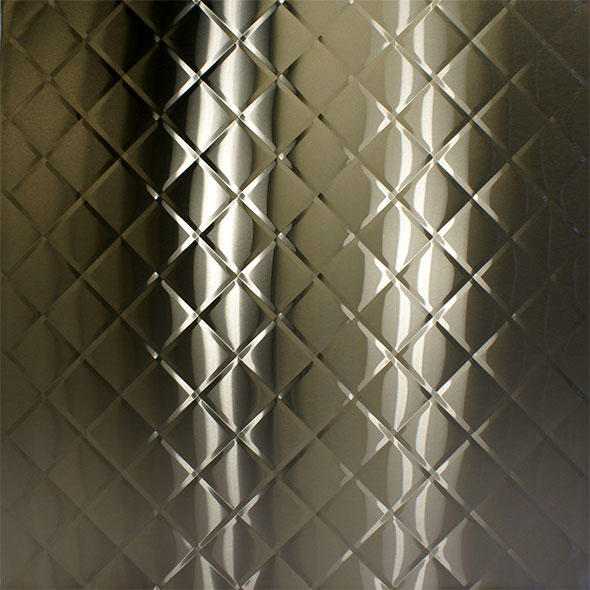

4" Stainless Steel Beveled Embossed Diamond Quilted Pattern

Technical Specs

rollover to enlarge

D4B Beveled

D4B Beveled



Beveled Embossed

304 #8 Beveled 304 #4 Beveled

Cost Calculator >>

Order Samples >>

Description

Our beveled style provides a unique option to the more traditional fine line style. The beveled emboss has wide V shaped lines (9/16" wide) compared to the fine line emboss which has narrow (1/16") U shaped lines. The fine line and beveled patterns are both the same depth.

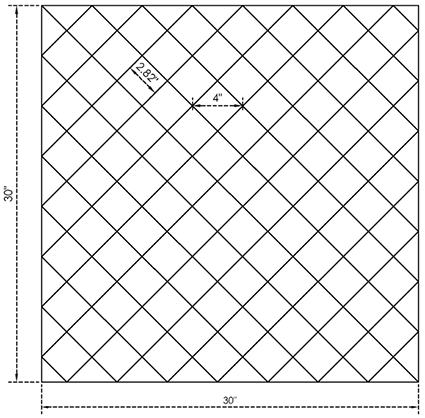

D4B is a variation on our most common pattern, D4 fine line, which is an improvement to the common "quilted pattern". Stainless Supply's design is based on a 2.82" square dimension instead of the common 3". This causes the point to point dimension to be an even 4", allowing the diamonds to be full on all edges of a full 4' x 10' or 4' x 8' sheet. In contrast, the common 3" design will not line up on full sheets and not give a seamless transition to full sheets installed next to each other. Using our trim molding, the pattern on full sheets of quilted stainless steel will appear to run continuously.

This is made out of your choice of 22 gauge or 24 gauge stainless steel sheet metal. It comes with a PVC film on one side to help protect against scratching during fabrication and installation.

If you need any fabrication (hemming, rounded corners), you must select the "cut to your size" option and not "stock sheets".

Stainless Supply is the manufacturer and source of embossed stainless steel. We produce our patterns in a high precision machine offering a high quality and more pronounced pattern depth compared to many other manufacturers.

Unless specified, Stainless Supply centers the embossed patterns on custom and cut to size pieces. If you need help with ordering, have a large project that needs quoted, or have any questions, do not hesitate to call us at 877-484-0088.

+ Read Description

Our beveled style provides a unique option to the more traditional fine line style. The beveled emboss has wide V shaped lines (9/16" wide) compared to the fine line emboss which has narrow (1/16") U shaped lines. The fine line and beveled patterns are both the same depth.

D4B is a variation on our most common pattern, D4 fine line, which is an improvement to the common "quilted pattern". Stainless Supply's design is based on a 2.82" square dimension instead of the common 3". This causes the point to point dimension to be an even 4", allowing the diamonds to be full on all edges of a full 4' x 10' or 4' x 8' sheet. In contrast, the common 3" design will not line up on full sheets and not give a seamless transition to full sheets installed next to each other. Using our trim molding, the pattern on full sheets of quilted stainless steel will appear to run continuously.

This is made out of your choice of 22 gauge or 24 gauge stainless steel sheet metal. It comes with a PVC film on one side to help protect against scratching during fabrication and installation.

If you need any fabrication (hemming, rounded corners), you must select the "cut to your size" option and not "stock sheets".

Stainless Supply is the manufacturer and source of embossed stainless steel. We produce our patterns in a high precision machine offering a high quality and more pronounced pattern depth compared to many other manufacturers.

Unless specified, Stainless Supply centers the embossed patterns on custom and cut to size pieces. If you need help with ordering, have a large project that needs quoted, or have any questions, do not hesitate to call us at 877-484-0088.

+ 304 Stainless Steel #4 Finish

+ 304 Stainless Steel #8 Mirror

+ 304 Stainless Steel Sheet Bright Annealed (BA) Finish

+ 316L Stainless Steel Sheet #4 Finish

+ 316L Stainless Steel Sheet #8 Mirror

+ 430 Stainless Steel Sheet #4 Finish

+ 430 Stainless Steel Sheet #8 Mirror

+ 430 Stainless Steel Sheet Bright Annealed (BA) Finish






Quick Request


Need something different?
Can't find what you're looking for?

Click here to submit your request.

<< Back

Cost Calculator

Step 3: Stock Or Cut To Size
Step 3: Stock Or Cut To Size
SELECT ONE

Cut To Your Size (square / rectangle)
Cut To Your Size (circle)



Shear Cut ± 1/16" (± 0.062")
Laser Cut ± 1/64" (± 0.015")
(Laser cut orders will incur a one time $65 setup fee for entire order)

Select unit of measurement:
Fraction Decimal


Whole #     Fraction
Whole #     Decimal
.
.
Click Here for Wholesale Pricing Information
Qty:


QUANTITY DISCOUNTS

QUANTITY DISCOUNT % PRICE/PIECE
2 - 10 10% Discount
11 - 50 20% Discount
51+ 30% Discount

QUANTITY DISCOUNTS

QUANTITY DISCOUNT % PRICE/PIECE
2 - 3 10% Discount
4 - 10 20% Discount
11+ 30% Discount
Step 5: Fabrication Options




EMERGENCY RUSH SERVICE AVAILABLE

For stock or shear cut to size orders, typical lead time is 6 days.
For laser orders, typical lead time is 11 days.

We can expedite these orders for an additional charge if the option is selected in your shopping cart. If you have a critical lead time, please feel free to call and place your order via phone: (877) 484-0088

All cuts are guaranteed to be +.125" -0" (+1/8" -0")
Please note that cuts less than a whole inch will be priced at the next full inch price.
