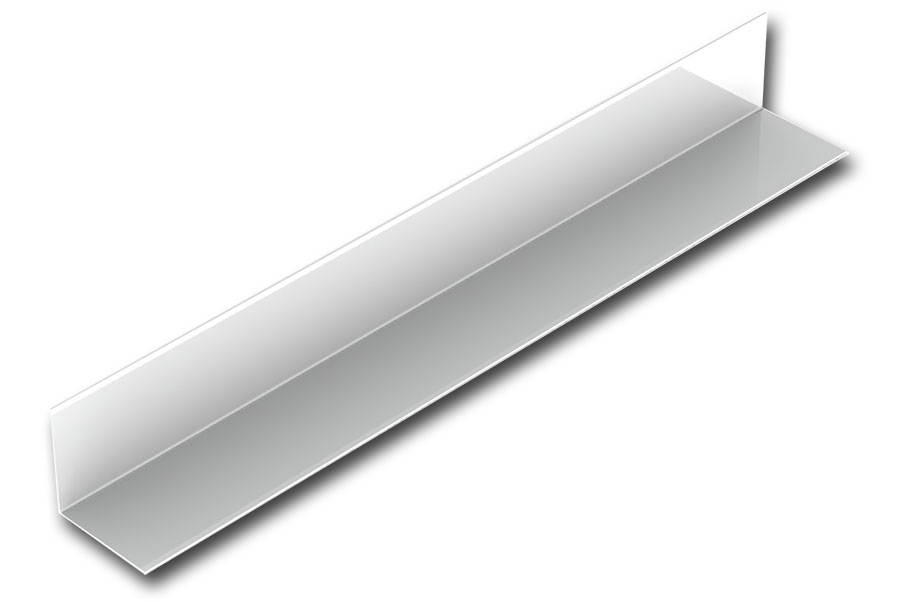

Custom Angle - White Aluminum

Custom Angle - White Aluminum

rollover to enlarge



Description

3105 white aluminum custom angle is an alloy with 1.2% manganese to improve the strength over pure aluminum. It is a general purpose aluminum that is suitable for painting and is commonly used for sign making, residential siding, mobile homes and in sheet metal work.

Unlike structural, extruded angle, our custom angle will be cut to your specifications and bent in a press break. Therefore, our custom angle will give customers more variety of fabrication options, including a wide range of bending angles, hemmed edges (on thinner gauge material), flange options, uneven leg sizes, etc.

On our custom angle made out of material with a finished side, Stainless Supply also offers the choice of which side the finish side is placed on the custom angle, which can be selected in Step 2 of the Cost Calculator. For #4 brushed finish, #8 mirror finish, and Bright Annealed (BA) finish stainless steel, the finished side will have a protective film on it to help prevent scratching until the product is delivered. On our smooth finish and tread plate aluminum, there may or may not be a protective film on the material as it is not industry standard to have PVC film. Please contact Stainless Supply if you prefer a scratch free side on mill finish aluminum and a sales representative can verify if it is possible on the aluminum custom angle that is being ordered.

Currently, Stainless Supply can offer up to 120" (10 foot) lengths of custom angle. In terms of shipping, UPS and Fed-Ex ground will not take packages over 9 feet in length (including packaging). Therefore, anything over 96" (8 feet) will be rated as a freight shipment after adding it to the shopping cart and typically the shipping price will be higher than ground orders. If you have any questions about freight shipments, please call our office at 877-484-0088.

In stock! Order now!




Angle/Channel


Quote Request
File Upload

Click here to submit your request.

Cost Calculator

(Click here for thickness chart)
(Click here for radius information)
Step 2: Design Your Profile
These measurements represent the outside dimension.
Whole #     Fraction
Angle 1:


Finish Side Preference?
(Choose which side of the angle will show the "good side" of the metal)

Edge Options:

     None Hemming Flanges


  Rounded Corners:



     No Yes

    (Click here for more information.)

Step 3: Select Custom Or Stock Length
Custom Length
Stock Length
Click Here for Wholesale Pricing Information
Qty:


Would you like to receive a scaled measured drawing for approval before we fabricate?
(This option may add more time, typically 1-2 days after your approval)
(Some complicated jobs require approval prior to fabrication)



EMERGENCY RUSH SERVICE AVAILABLE

For stock or shear cut to size orders, typical lead time is 2 days.
For laser orders, typical lead time is 5 days.

We can expedite these orders for an additional charge if the option is selected in your shopping cart. If you have a critical lead time, please feel free to call and place your order via phone: (877) 484-0088

All shear cuts are guaranteed to be ± 1/16".
All laser cuts are guaranteed to be ± 1/64".
Please note that cuts less than a whole inch will be priced at the next full inch price.

Note:
A custom angle setup charge of $27 per thickness will be applied in your cart.
